DS1621+

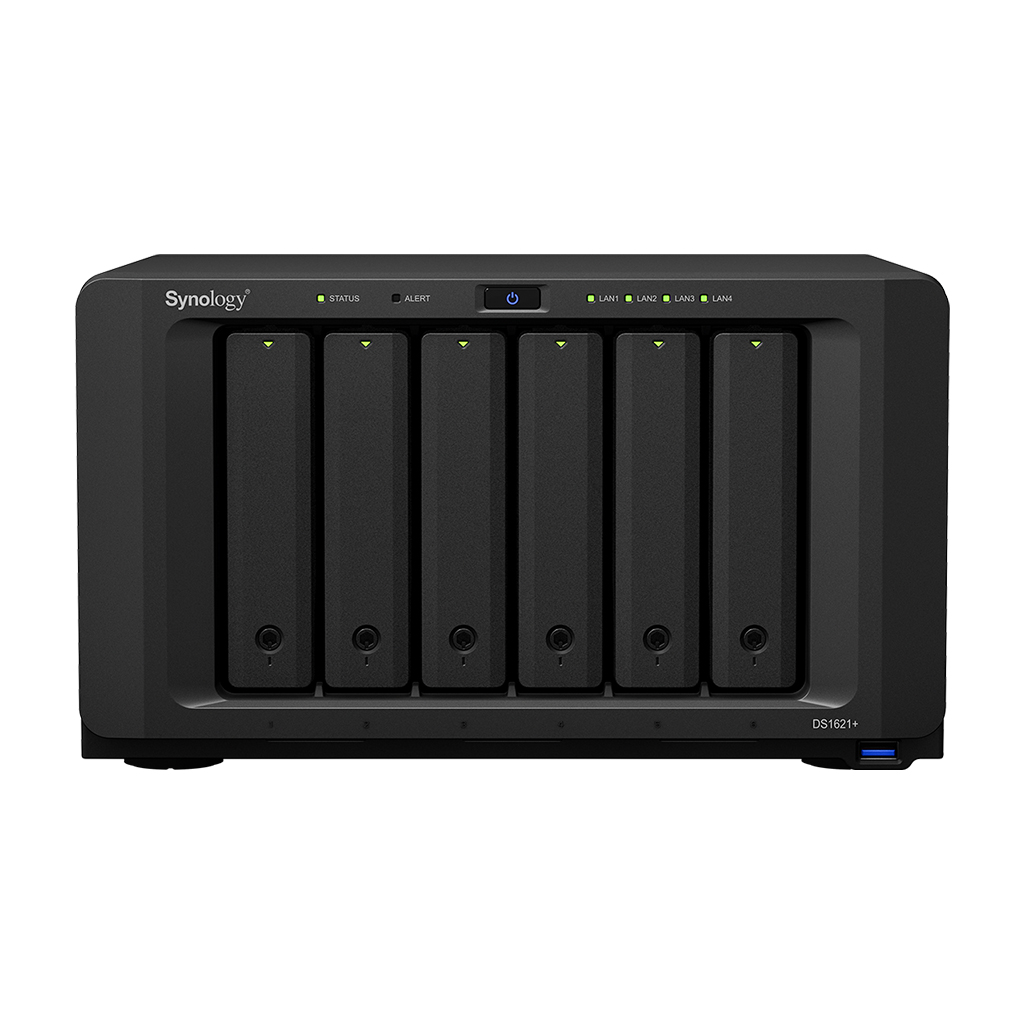

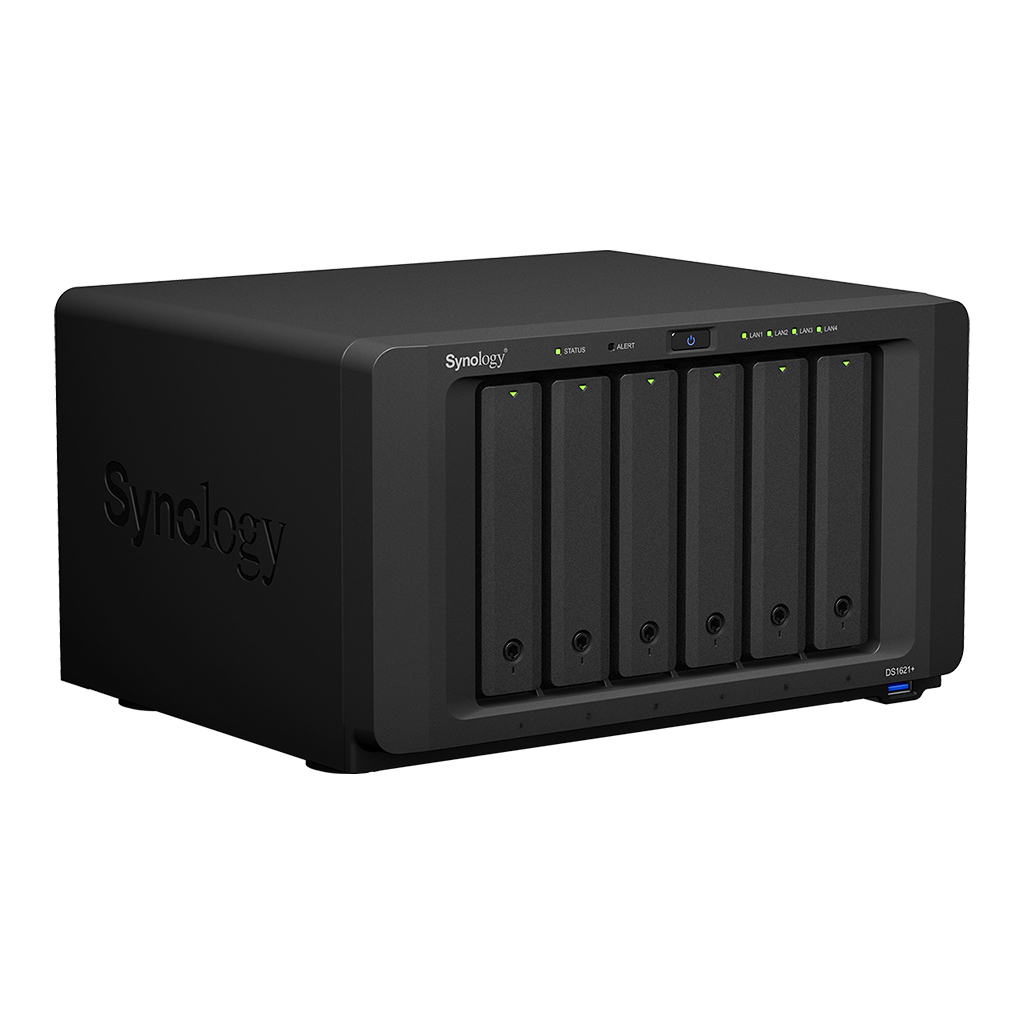

DiskStation® DS1621+

Data management and protection, for anyone

Features
Specs

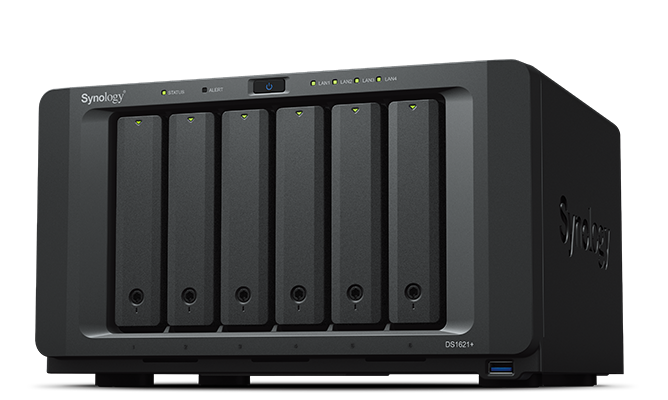

Powerful, scalable, and versatile

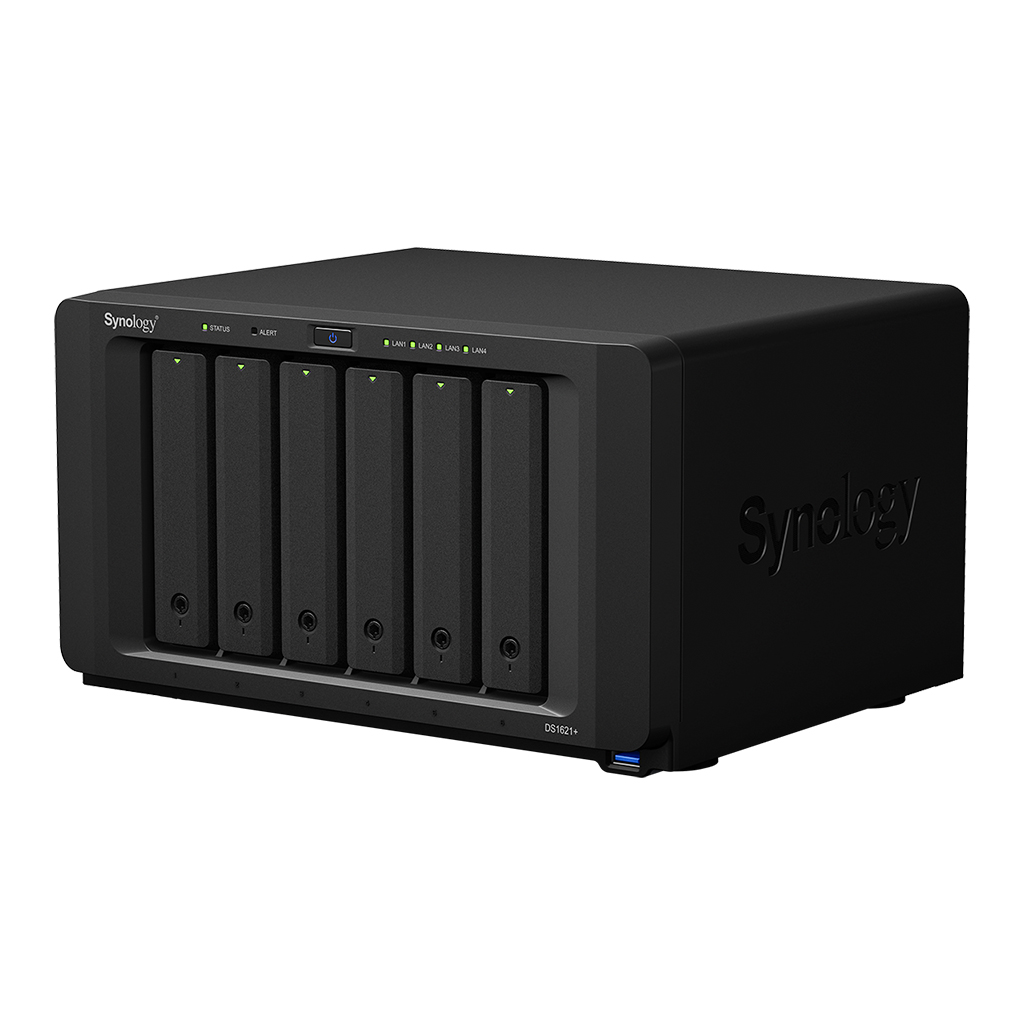

Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.

CPU

AMD Ryzen™
Quad-core 2.2 GHz

Cache Acceleration

Dual M.2 2280 slots for NVMe Cache

Performance

110K, 174% higher 4K random read IOPS1

Scalability

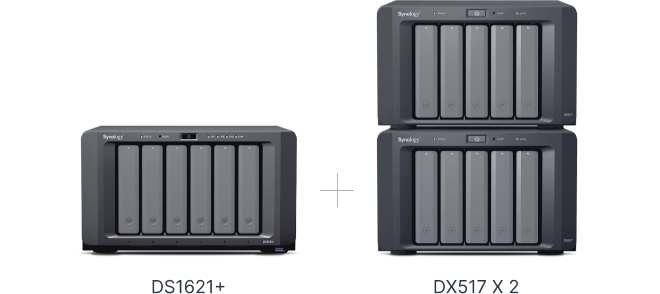

Expand up to 16 drives with two DX517 expansion units

Simply faster

DS923+ can handle more demanding application workloads and a greater number of concurrent users compared to prior-generation systems. Experience faster file indexing in Synology Drive, photo organization in Photos, and concurrent file transfers.1

Synology Drive

0 %

faster file indexing

Synology Photos

0 %

faster photo indexing

Multiple file transfers

0 %

faster random write

The performance you need

Reduce transfer times with the DS1621+, designed to accelerate your workloads. Easily add faster networking and NVMe drives to further boost performance.

Up to

2,323/1,434 MB/s

read/write2

Up to

25GbE

networking3

2 x M.2

NVMe

cache & storage pool4

Storage that fits your needs

Make the most of high-performance networking and file access without taking up unnecessary space. DS1621+ comes equipped with 6 bays and can scale up to 16 bays with 2 DX517 expansion units as your data needs grow.5

5 bays

90 TB

15 bays

234 TB

Ultimate file management and sharing

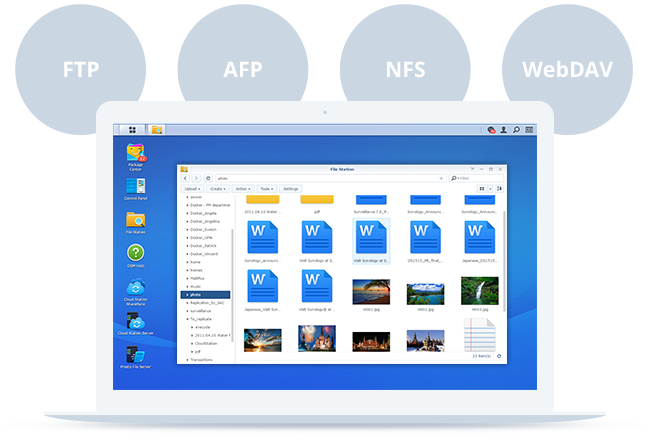

File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1621+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

Ultimate file management and sharing

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Ultimate Backup Solution

DS1621+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Active Backup for Business

Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Synology Drive

Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.

Active Backup for Business

On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Get extra protection with Extended Warranty Plus

Extend the standard 3-year hardware warranty of your DS1621+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

Powered by Synology DiskStation Manager

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Synology MailPlus

Secure, reliable, and private mail server solution with an intuitive and modern mail client.

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

Synology Drive

Instantly access your NAS files across multiple devices whenever you want, wherever you are.

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Works best with Synology drives

Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

DiskStation® DS1621+

Hardware Specs

Software Specs

Hardware Specs

Hardware Specifications
CPU
CPU	CPU Model	AMD Ryzen V1500B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 2.2 GHz
	Hardware Encryption Engine (AES-NI)
Memory
Memory	System Memory	4 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	4 GB (4 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Storage	Drive Bays	6
	Maximum Drive Bays with Expansion Unit	16 (DX517 x 2)
	M.2 Drive Slots	2 (NVMe)
	Compatible Drive Type* (See all supported drives)	3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

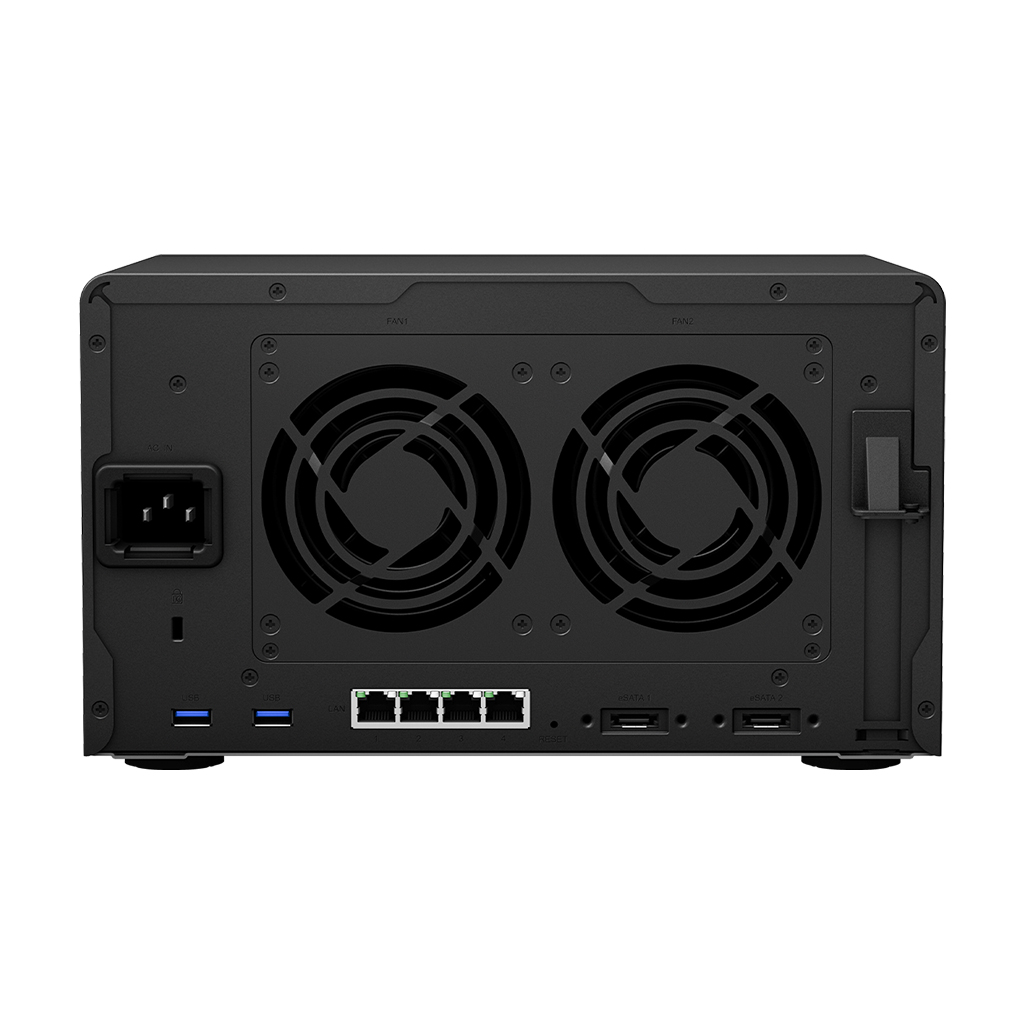

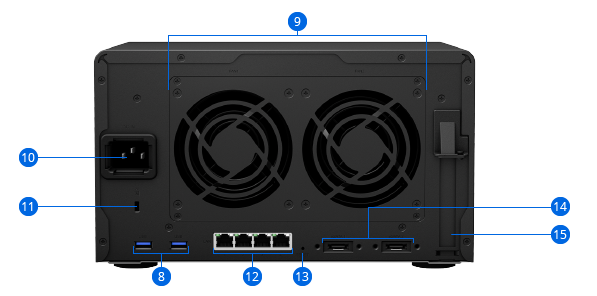

External Ports
External Ports	RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	3
	eSATA Port	2
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

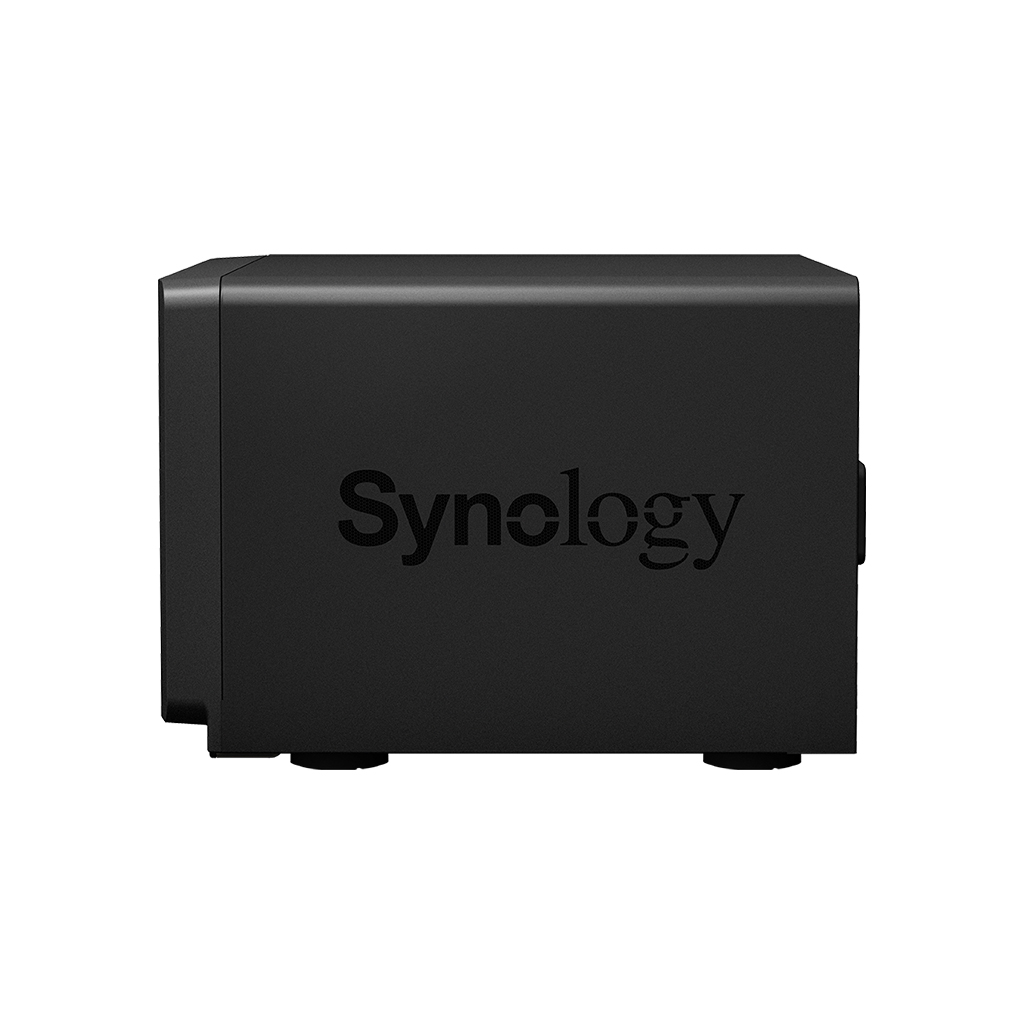

Appearance
Appearance	Size (Height x Width x Depth)	166 mm x 282 mm x 243 mm
	Weight	5.1 kg
Others
Others	System Fan	92 mm x 92 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	25.2 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	250 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	51.22 W (Access) 25.27 W (HDD Hibernation)
	British Thermal Unit	174.77 BTU/hr (Access) 86.22 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification
Certification	FCC CE BSMI EAC CCC KC VCCI RCM
Warranty
Warranty	3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
Environment	RoHS Compliant
Packaging Content
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories
Optional Accessories	DDR4 ECC SODIMM: D4ES01-4G/D4ES01-8G/D4ECSO-2666-16G Expansion Units: DX517 3.5″ SATA HDD: HAT5300/HAT3300 2.5″ SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 Surveillance Device License Pack
	Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Software Specs

DSM Specifications
Storage Management
Storage Management	Maximum Single Volume Size	108 TB
	Maximum Internal Volume Number	64
	M.2 SSD Storage Pool Support*
	SSD Read / Write Cache (White Paper)
	SSD TRIM
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more) Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Each internal volume (may consist of multiple drives) is expandable up to 108TB.
File Services
File Services	File Protocol	SMB/AFP/NFS/FTP/WebDAV
	Maximum Concurrent SMB/AFP/FTP Connections	1,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	2,000
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	16
Hybrid Share
Hybrid Share	Hybrid Share Folder Number	10
Hyper Backup
Hyper Backup	Folder and Package Backup
	Entire System Backup
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability
High Availability	Synology High Availability
Log Center
Log Center
Log Center	Syslog Events per Second	1,000
Virtualization
Virtualization	VMware ESXi 6.5 and VAAI
	Windows Server 2016
	Windows Server 2019
	Windows Server 2022
	Citrix Ready
	OpenStack
General Specifications
General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
Antivirus by McAfee (Trial)
Central Management System
Central Management System
Synology Chat
Synology Chat
Synology Chat	Suggested Maximum Users	1,500
	Suggested Concurrent Users	150
	Notes	When applicable, tested systems are configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
Document Viewer
Download Station
Download Station
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager
SAN Manager
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX
	Notes	iSCSI Manager has been renamed to SAN Manager in DSM 7.0.
Synology MailPlus / MailPlus Server
Synology MailPlus / MailPlus Server
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Suggested Maximum Users	750
	Suggested Concurrent Users	150
	Maximum Server Performance	1,484,000 emails per day, approx. 45GB
	Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
Media Server
Media Server	DLNA Compliance
Synology Photos
Synology Photos
Synology Photos	Facial Recognition
	Object Recognition
Snapshot Replication
Snapshot Replication
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station
Surveillance Station
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Maximum IP Cameras and Total FPS (H.264)	720p: 40 channels, 1200 FPS 1080p: 40 channels, 1050 FPS 3M: 40 channels, 600 FPS 5M: 40 channels, 440 FPS 4K: 32 channels, 320 FPS
	Maximum IP Cameras and Total FPS (H.265)	720p: 40 channels, 1200 FPS 1080p: 40 channels, 1200 FPS 3M: 40 channels, 1120 FPS 5M: 40 channels, 600 FPS 4K: 40 channels, 480 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements.
Synology Drive
Synology Drive
Synology Drive	Recommended Number of Concurrent Sync Clients	550 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Synology Office
Synology Office	Suggested Maximum Users	4,500
	Suggested Concurrent Users	1,800
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Video Station
Virtual Machine Manager
Virtual Machine Manager
Virtual Machine Manager	Recommended Virtual Machine Instances	8 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server
VPN Server
VPN Server	Maximum Connections	40
